Battleship Magnum Frame by Wethepeople
Top Tube
Color
Highlights

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

Product Details

Hook
An icon, raised higher. Built for riders who want more frame beneath them.

Identity
The Battleship Magnum Frame is Wethepeople evolving a modern classic. Since 2016, the Battleship has defined technical street riding with unmistakable hydroformed tubing and razor-sharp geometry. The Magnum takes that legacy and lifts it. Literally. With a taller 9.75” standover and longer top tube options, this is a pro-level street frame for taller riders or anyone chasing a more commanding, upright feel without losing the fast, technical DNA that made the Battleship iconic. This is a frame only, designed for experienced riders who know the difference geometry makes.

Energy
Same weapon. Bigger presence.

Details
Built from butted Japanese seamless 4130 chromoly, the Battleship Magnum pairs legendary hydroformed top and down tubes with a unique hydroformed seat tube for added rigidity and strength. The taller standover gives more frame to grip, pinch, and control through technical lines, while the ultra-short rear end keeps it responsive on ledges and rails. Clearance for modern wide tires, grind-ready dropouts, and reinforced junctions throughout make this a street frame that thrives under real pressure. Backed, as always, by the Wethepeople Lifetime Guarantee.

Specifications

Highlights
• Taller standover evolution of the iconic Battleship street frame
• Hydroformed top, down, and seat tubes for stiffness and strength
• Pro-level, team-designed street geometry
• Super short rear end for technical control
• Clearance for modern wide tires
• Includes Wethepeople Lifetime Guarantee

Technical Specs

Tubing:
Butted Japanese seamless 4130 chromoly steel

Bottom Bracket:

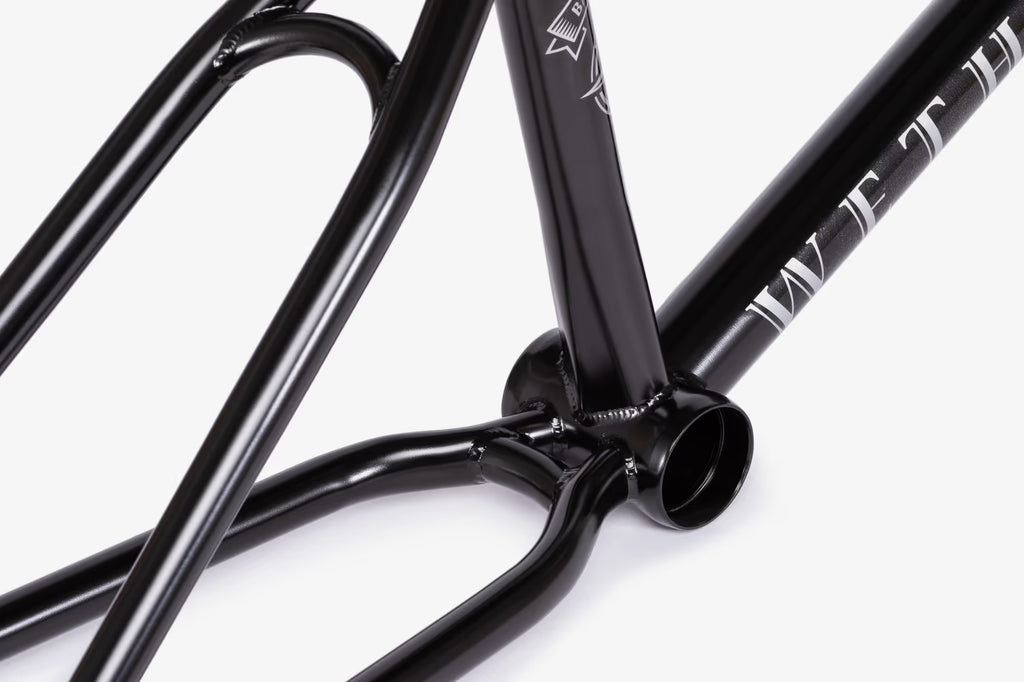

74 mm mid size, CNC-machined and heat-treated

Head Tube:

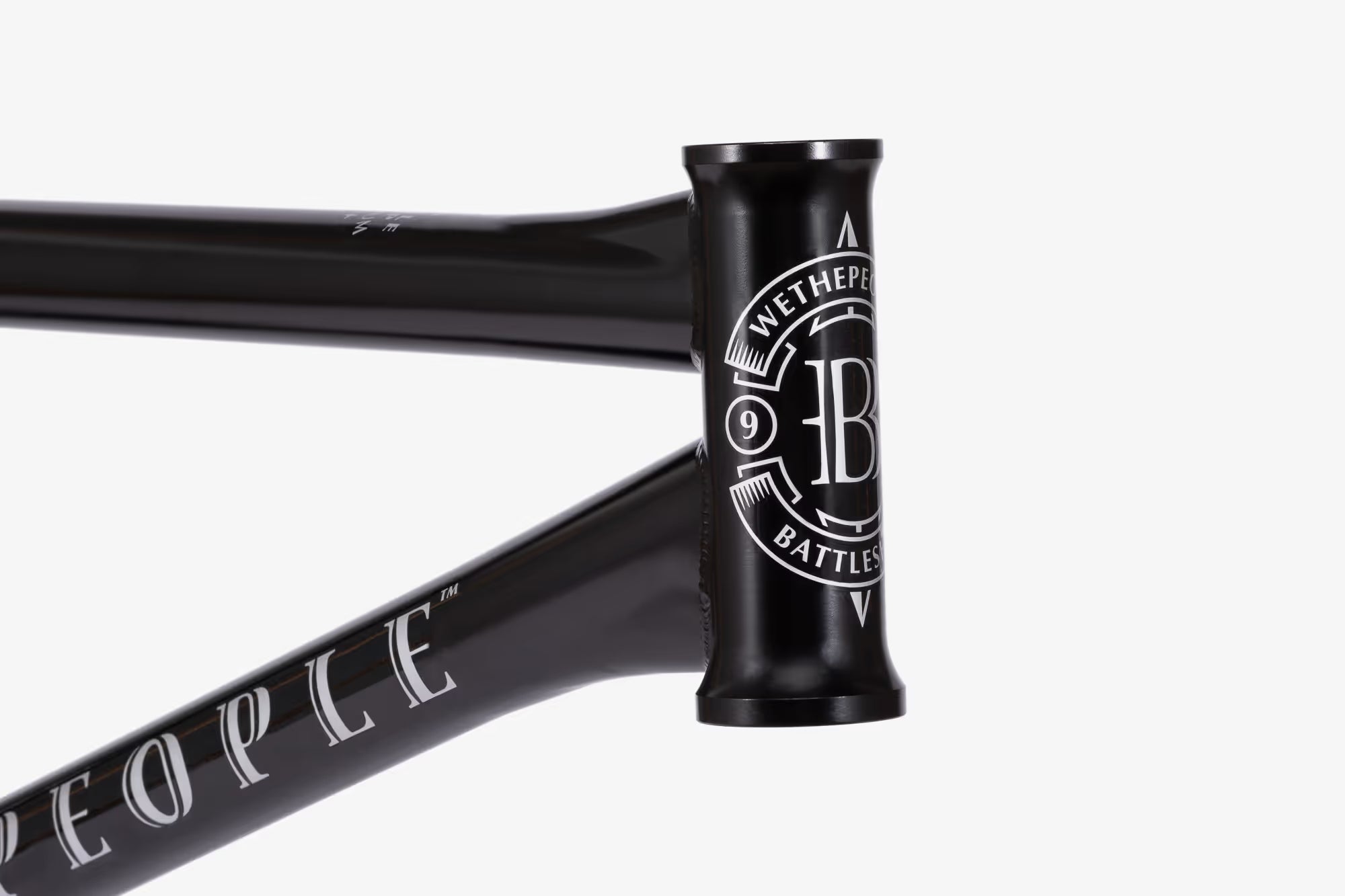

127 mm CNC-machined and heat-treated, integrated headset

Dropouts:
Laser cut and CNC-machined 6 mm thick, heat-treated 4130 chromoly, peg and hub guard friendly

Brake Mounts:
Brakeless frame

Special Features:
• Tall 9.75" standover for a bigger, more commanding frame feel

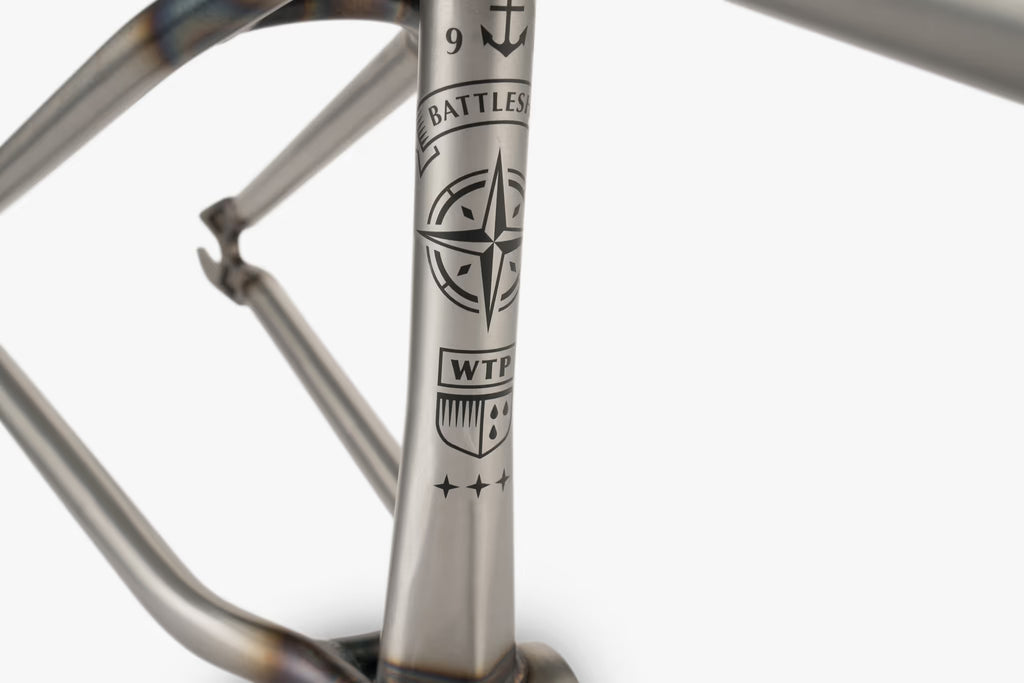

• Unique hydroformed seat tube for increased rigidity and strength
• Longer top tube options for taller riders
• Extra-thick double-butted top tube
• Super short 12.75" slammed chainstay length
• Wide rear triangle with clearance for up to 2.4" tires
• Hydroformed top and down tubes for superior stiffness
• Investment cast seat clamp
• Reinforced 1.8 mm welds at the head tube
• Ovalised chainstays for increased tire and sprocket clearance
• Lifetime Guarantee included

Colors:
Galactic Purple

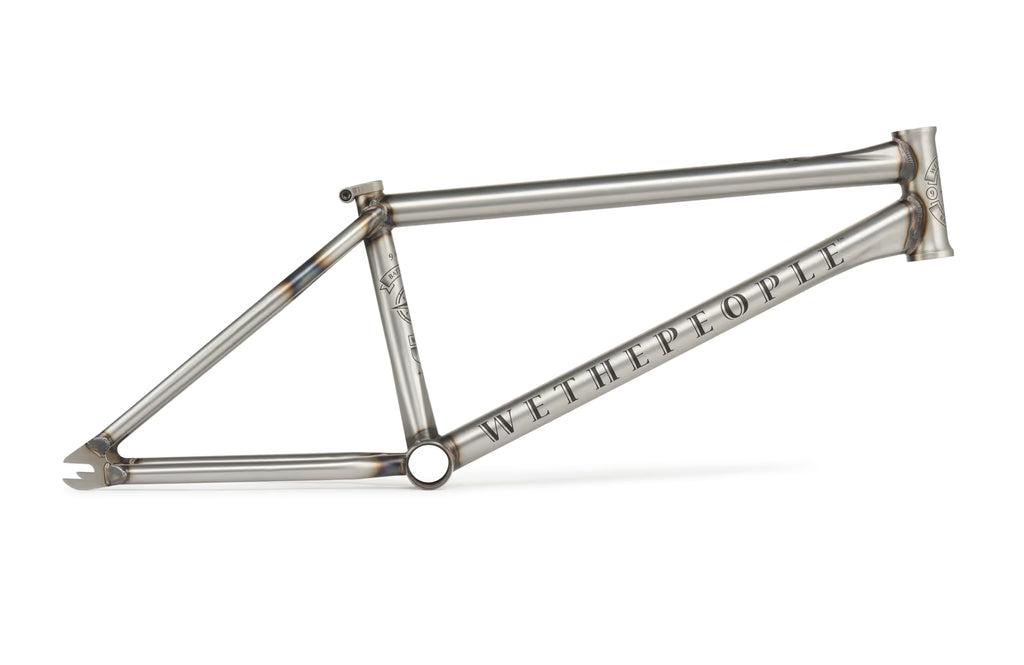

Matt Raw

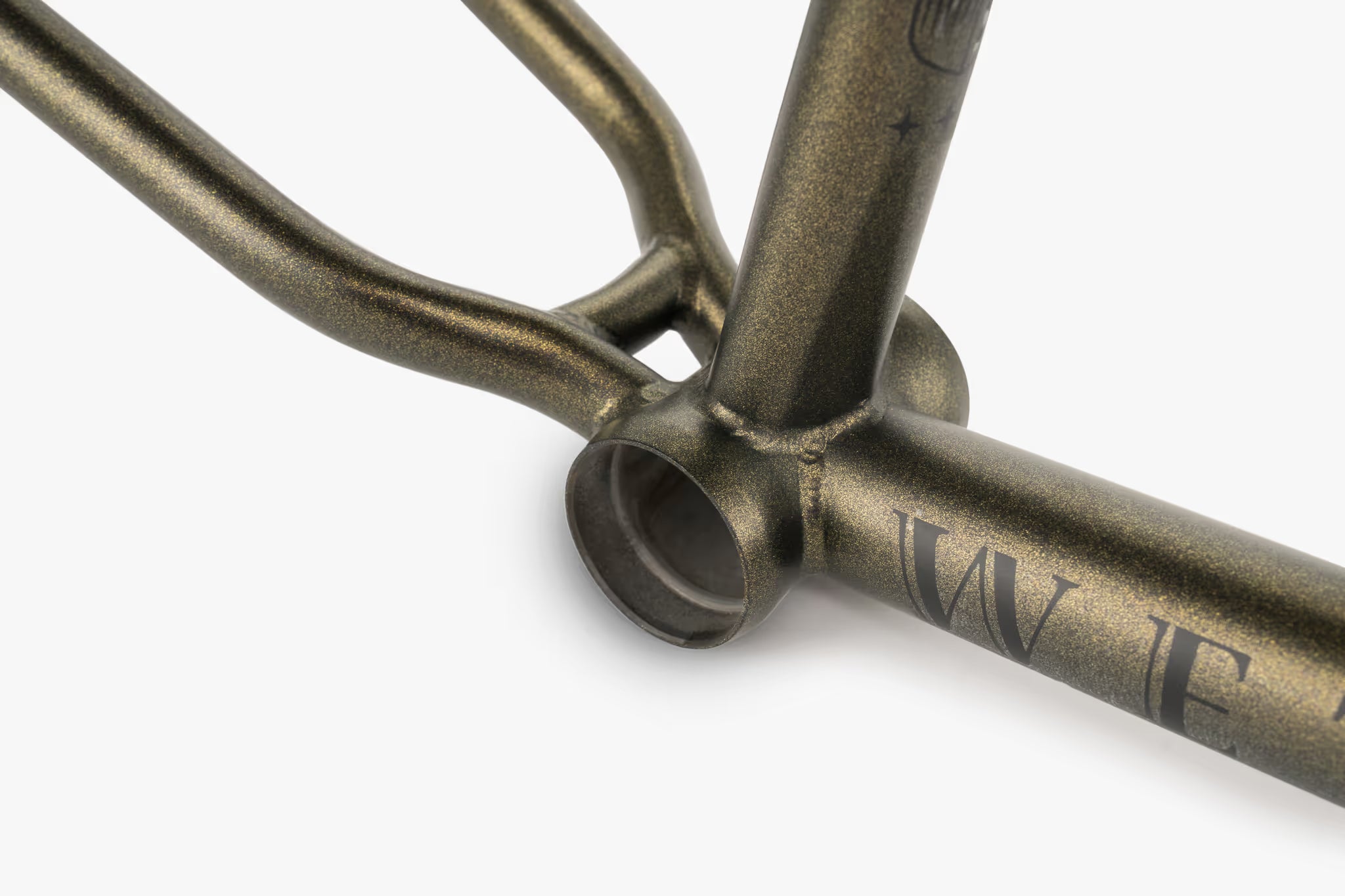

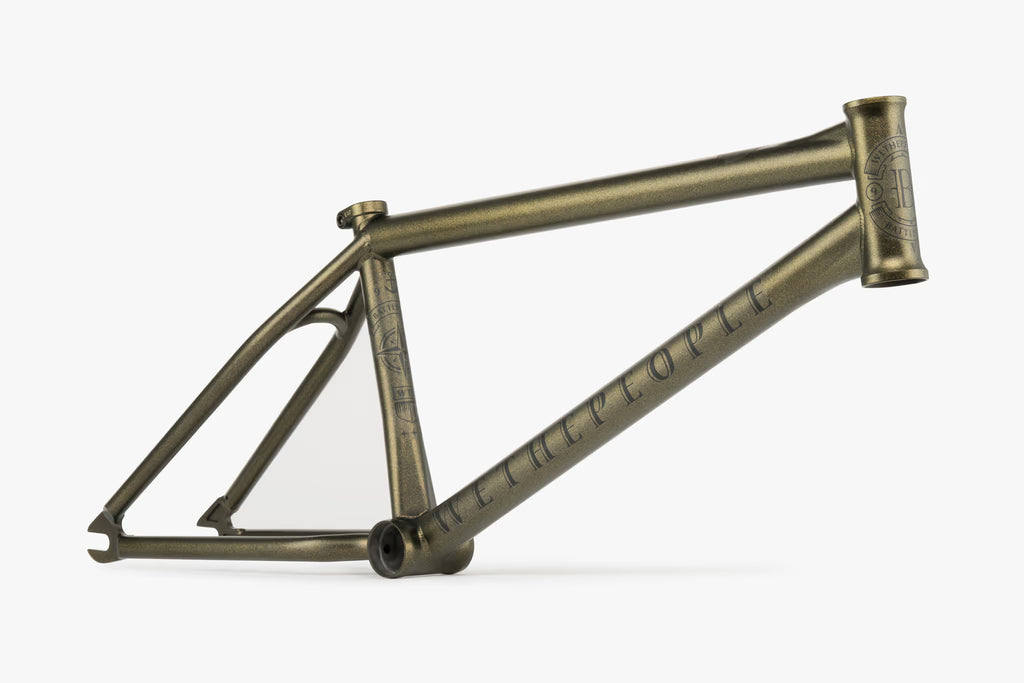

Metallic Bronze

Weight:
2.53 kg / 5.57 lbs (21" top tube)

Geometry

Top Tube Lengths:
20.75"
21"
21.25"

Chainstay Length:
12.7" – 13.25" optimized for 12.75" / 13" with 25-9

Head Tube Angle:
75.5°

Seat Tube Angle:
71°

BB Height:
11.7"

Standover Height:
9.75"

Care & Maintenance

Street frames live hard. Inspect welds, dropouts, and BB area regularly, especially if riding pegs or heavy grind setups. Keep headset and BB bearings clean and greased to maintain the tight, precise feel this frame is designed for.

Size & Fit

The Battleship Magnum is ideal for riders who want a taller standover and more room up front. Longer top tube options give taller riders proper balance without sacrificing the quick rear-end response that defines the Battleship feel.
